[點晴永久免費OA]使用OpenSSL自簽發SSL證書實現局域網內網站https方式訪問

admin
2025年9月15日 22:40 本文熱度 661
在最近的項目中遇到因?yàn)椴皇峭ㄟ^(guò)https方式訪問網站,導致等保測評無法通過,被打上了高風險的標簽,而高風險為一票否決項,因此這是必須整改的內容,客戶網絡為內部網絡環境,從網絡環境和實際需求看完全可以通過OpenSSL進行自簽發SSL證書來實現這一個目的。

下邊就來看下如何操作的,首先你需要一臺Linux服務器并且已經安裝了OpenSSL工具,如果沒有安裝的可以使用yum/apt-get一鍵安裝,安裝完成后操作如下:

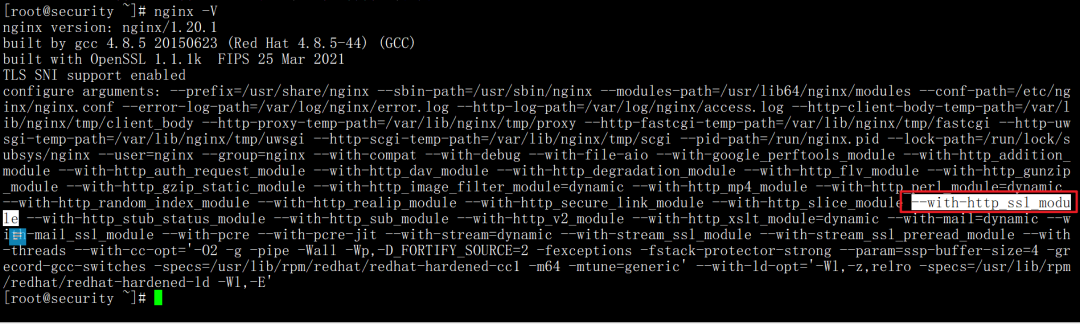

1、使用nginx -V查看是否支持SSL證書

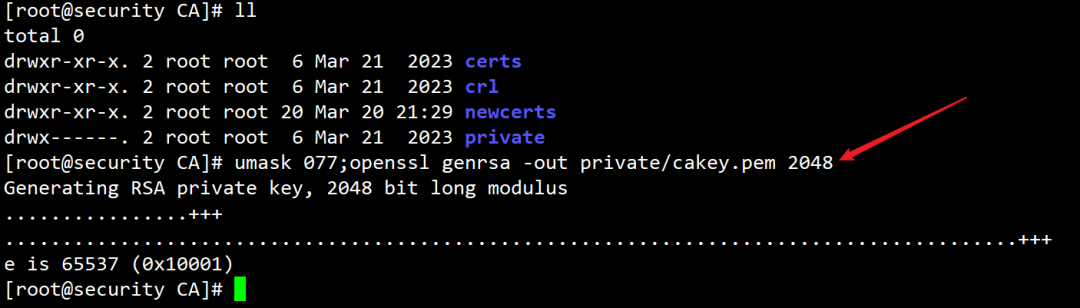

2、找到一臺服務器,假如這臺服務器就是CA證書服務器,我這里是用的Linux服務器,具體版本(Centos7.9),進入/etc/pki/CA/目錄,執行如下命令,將umask設置為077權限,然后使用OpenSSL生成私鑰。
umask 077;openssl genrsa -out private/cakey.pem 2048

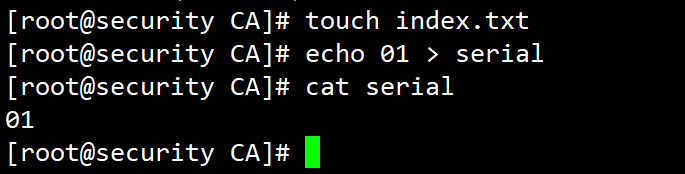

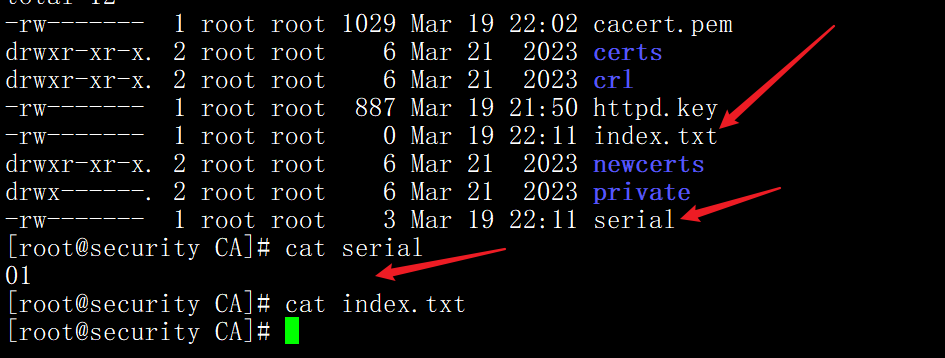

3、執行如下命令生成根證書并且創建兩個文件,分別是index.txt和serial,index.txt使用touch創建即可,serial中輸入01。
生成自簽證書
openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 3650
會讓你填寫一些信息,根據提示填寫就好了
[root@security CA]# openssl req -new -x509 -key httpd.key -out cacert.pem -days 3650You are about to be asked to enter information that will be incorporatedinto your certificate request.What you are about to enter is what is called a Distinguished Name or a DN.There are quite a few fields but you can leave some blankFor some fields there will be a default value,If you enter '.', the field will be left blank.-----Country Name (2 letter code) [XX]:CN    #國家State or Province Name (full name) []:SC   #省份Locality Name (eg, city) [Default City]:CD  #城市Organization Name (eg, company) [Default Company Ltd]:chengdu   #單位名稱Organizational Unit Name (eg, section) []:yunwei  #部門名稱Common Name (eg, your name or your server's hostname) []:www.ca.cn #填一個域名Email Address []:12345678@qq.com    #郵箱
4、找到另外一臺服務器,我這里只有一臺服務器,到另外一個目錄創建相關的證書,假如是/usr/ssl目錄
生成私鑰

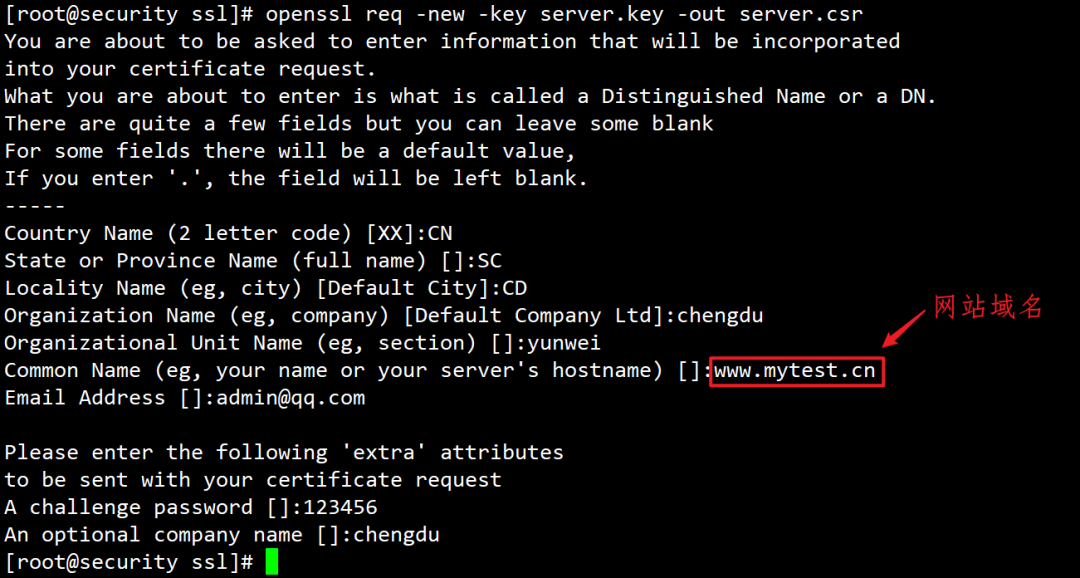

執行命令生成證書簽署請求,其中hostname項為網站域名,其他內容都和CA證書一致
openssl req -new -key server.key -out server.csr

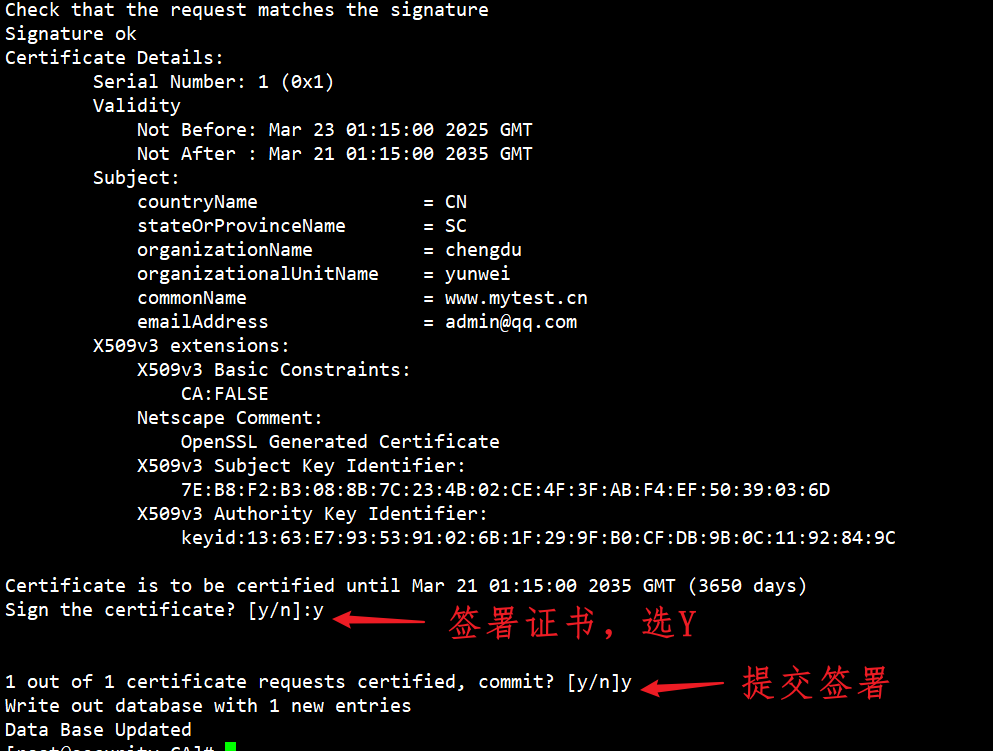

5、用之前生成的CA證書對證書簽署請求進行簽名,得到服務端證書
openssl ca -in /usr/ssl/server.csr -out server.crt -days 3650

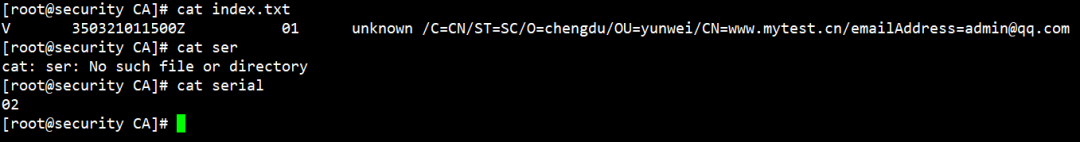

這就把證書簽好了,然后我們可以在index.txt和serial文件中看下相關數據
6、然后就可以去nginx或者Apache httpd中配置HTTPS方式訪問了
將簽署的證書簽署請求、服務端的key文件都放到nginx配置目錄下:/etc/nginx/下,或者可以自建一個目錄用于存放ssl證書文件。
配置NGINX配置文件nginx.conf
user nginx;worker_processes auto;error_log /var/log/nginx/error.log;pid /run/nginx.pid;
# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.include /usr/share/nginx/modules/*.conf;
events {    worker_connections 1024;}
http {    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '                      '$status $body_bytes_sent "$http_referer" '                      '"$http_user_agent" "$http_x_forwarded_for"';
    access_log  /var/log/nginx/access.log  main;
    sendfile            on;    tcp_nopush          on;    tcp_nodelay         on;    keepalive_timeout   65;    types_hash_max_size 4096;
    include             /etc/nginx/mime.types;    default_type        application/octet-stream;
    # Load modular configuration files from the /etc/nginx/conf.d directory.    # See http://nginx.org/en/docs/ngx_core_module.html#include    # for more information.    include /etc/nginx/conf.d/*.conf;
    server {        listen       8888;        listen       [::]:8888;        server_name  www.mytest.cn;        root         /var/www/html;        return 301 https://www.mytest.cn:9443;   #將http請求重定向到https#        # Load configuration files for the default server block.#        include /etc/nginx/default.d/*.conf;#        #        location ~ \.php$ {#        fastcgi_pass   127.0.0.1:9000;#        fastcgi_index  index.php;#        fastcgi_param  SCRIPT_FILENAME $document_root$fastcgi_script_name;#        include        fastcgi_params;#        }##        error_page 404 /404.html;#        location = /404.html {#        }##        error_page 500 502 503 504 /50x.html;#        location = /50x.html {#        }   }
# Settings for a TLS enabled server.#    server {        listen       9443 ssl;        listen       [::]:9443 ssl;        server_name  www.mytest.cn;        root         /var/www/html;
        ssl_certificate "/etc/nginx/ssl/server.crt";        ssl_certificate_key "/etc/nginx/ssl/server.key";        ssl_session_cache shared:SSL:1m;        ssl_session_timeout  10m;        ssl_ciphers HIGH:!aNULL:!MD5;        ssl_prefer_server_ciphers on;##        # Load configuration files for the default server block.        location ~ \.php$ {            fastcgi_pass   127.0.0.1:9000;            fastcgi_index  index.php;            fastcgi_param  SCRIPT_FILENAME $document_root$fastcgi_script_name;            include        fastcgi_params;            }
        include /etc/nginx/default.d/*.conf;        error_page 404 /404.html;            location = /40x.html {        }
        error_page 500 502 503 504 /50x.html;            location = /50x.html {        }    }
}
配置完成后使用nginx -s reload重新加載配置,讓其生效,然后配置本地證書文件和hosts

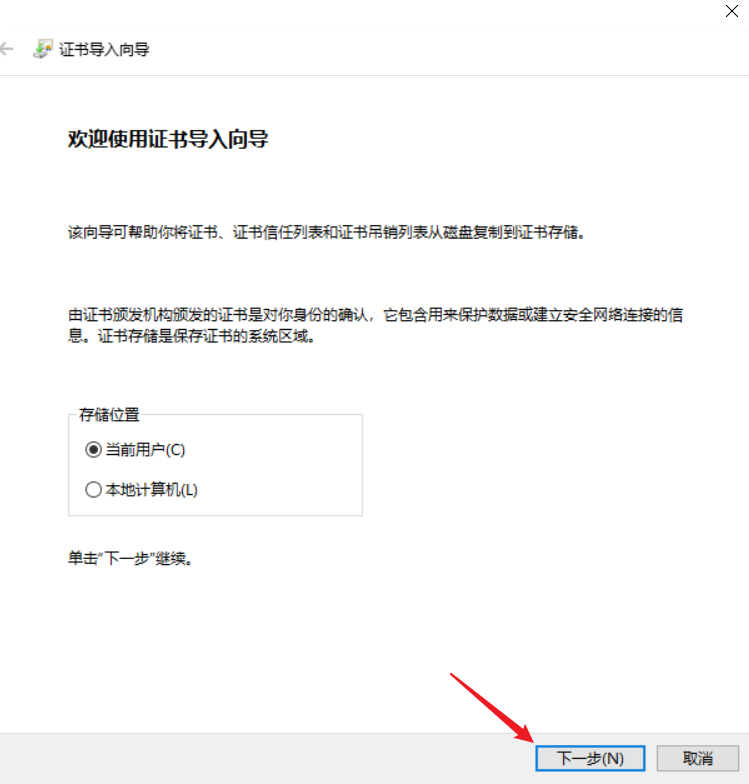

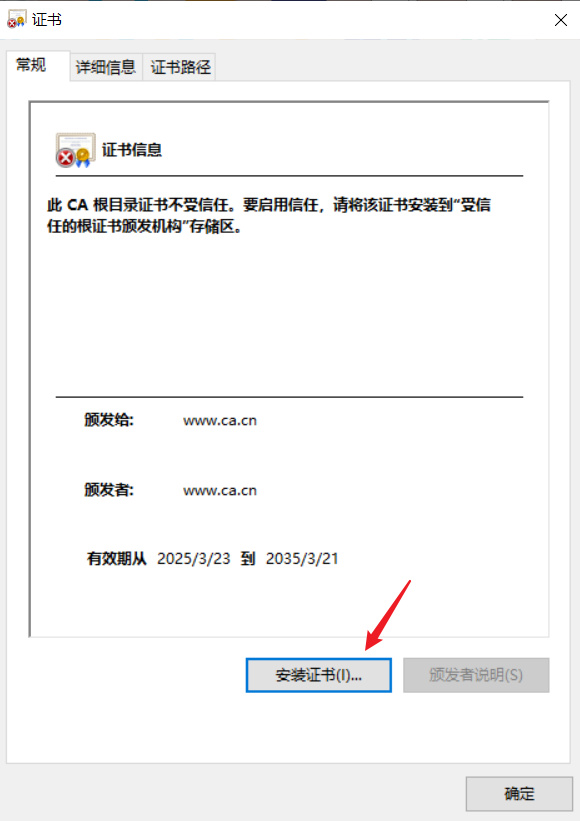

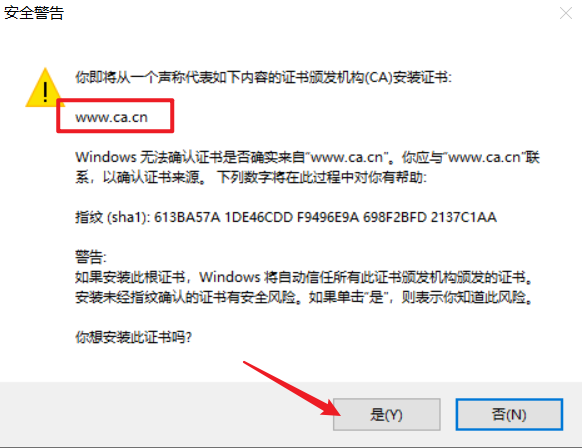

將第三步生成的CA服務器需要對外公開的證書文件cacert.pem復制到電腦本地,后綴名改為crt格式,然后雙擊安裝證書,將其導入到電腦本地

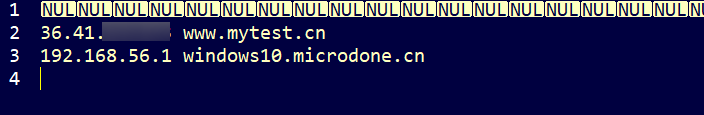

顯示導入成功即可,由于www.mytest.cn這個域名沒有在DNS域名服務商哪里注冊,所以需要我們自己在hosts文件中添加域名解析地址,Windows電腦在C:\Windows\System32\drivers\etc下,先將hosts文件拖出來到桌面,然后修改添加如下內容在拖進去
你的服務器ip地址  www.mytest.cn

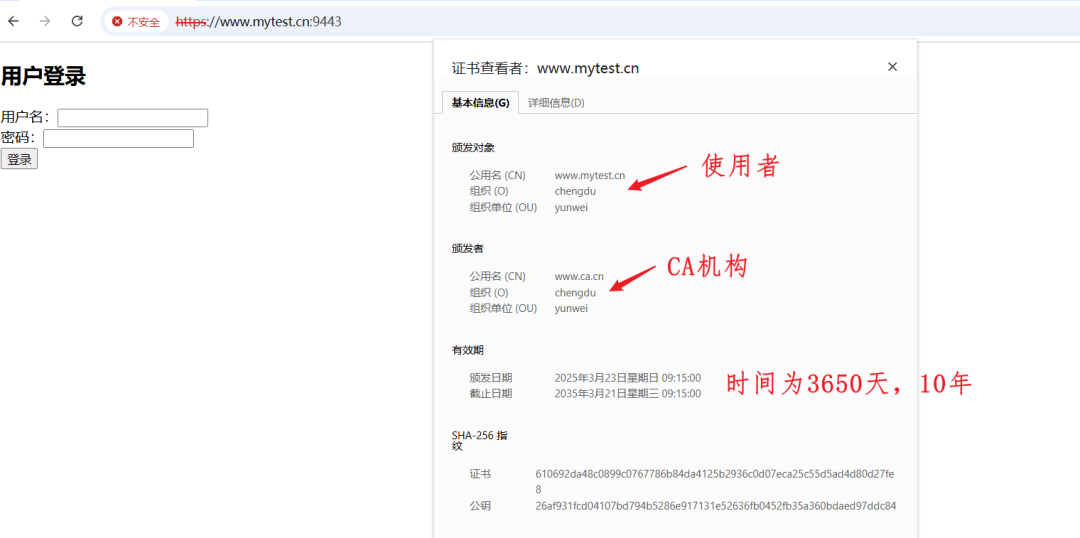

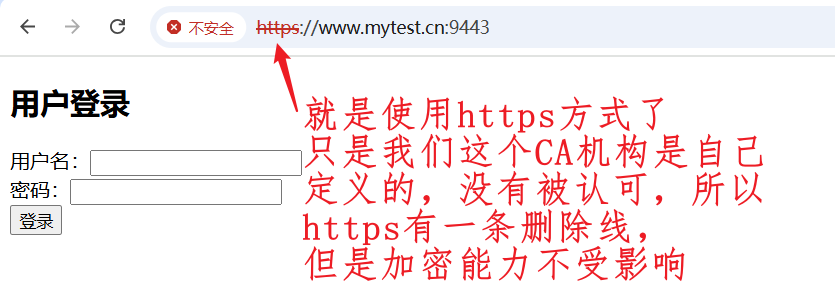

修改完成后就可以試著用https方式訪問了,由于我使用了天翼云的ECS云主機,但是天翼云如果使用80或者443端口需要進行備案,所以我這里使用9443作為網頁端口。

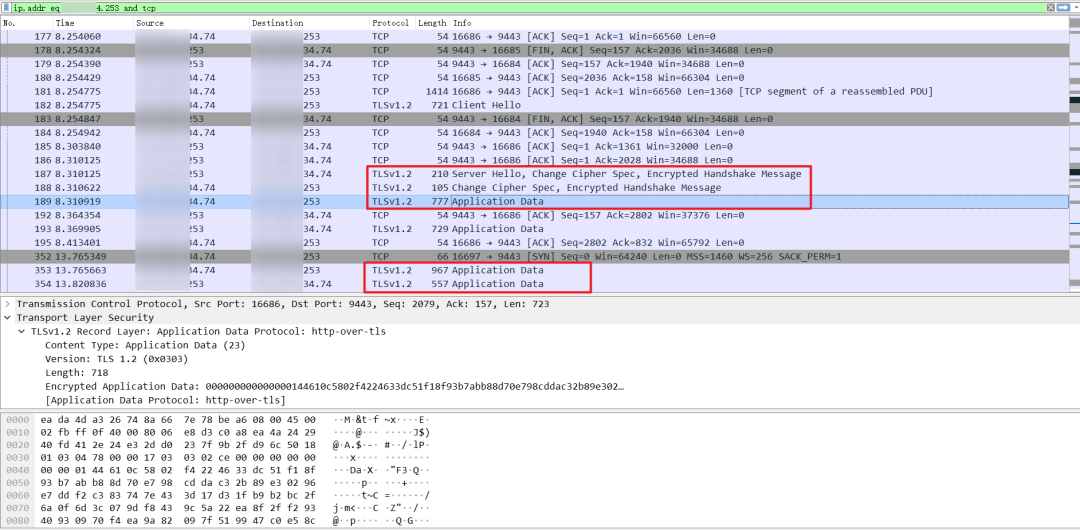

抓個包看下,數據被加密處理。
這就是使用openssl工具自簽發證書解決網頁未使用https訪問問題。


閱讀原文:原文鏈接


該文章在 2025/9/16 11:56:41 編輯過
