如何判斷一個元素是否在可視區域中?
當前位置:點晴教程→知識管理交流
→『 技術文檔交流 』

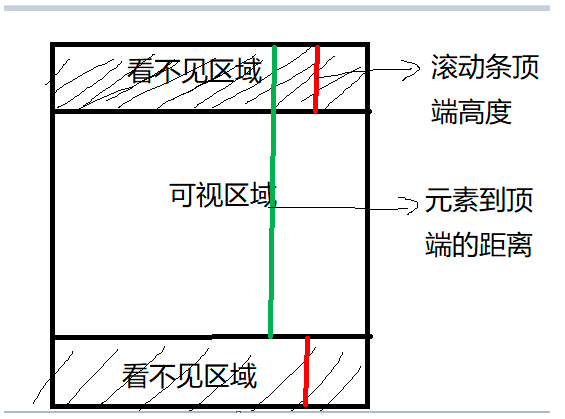

一、用途可視區域即我們?yōu)g覽網頁的設備肉眼可見的區域,如下圖 在日常開發中,我們經常需要判斷目標元素是否在視窗之內或者和視窗的距離小于一個值(例如 100 px),從而實現一些常用的功能,例如:
二、實現方式判斷一個元素是否在可視區域,我們常用的有三種辦法:
offsetTop、scrollTop

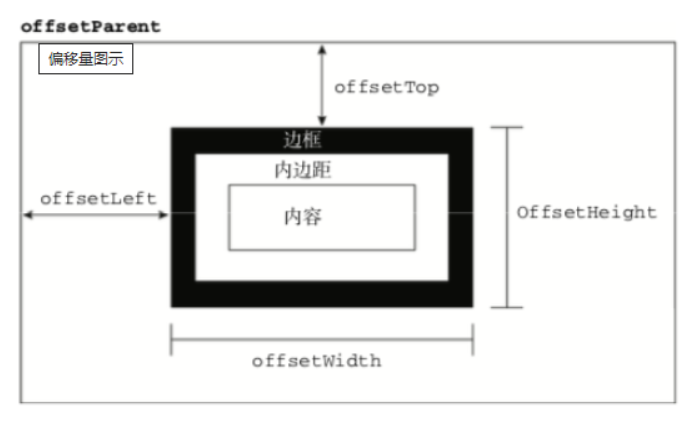

下面再來了解下
這里可以看到 最后,關于
注意

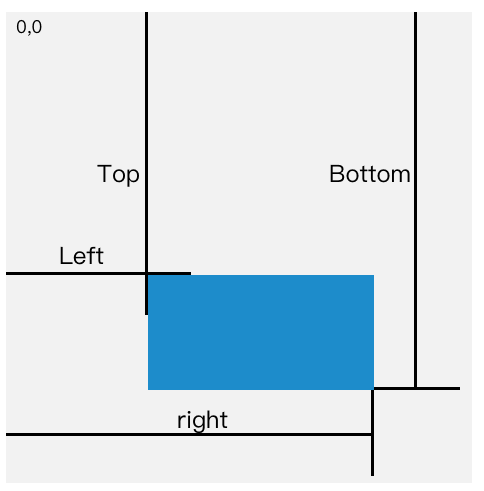

下面再看看如何實現判斷: 公式如下: el.offsetTop - document.documentElement.scrollTop <= viewPortHeight 代碼實現: function isInViewPortOfOne (el) { // viewPortHeight 兼容所有瀏覽器寫法 const viewPortHeight = window.innerHeight || document.documentElement.clientHeight || document.body.clientHeight const offsetTop = el.offsetTop const scrollTop = document.documentElement.scrollTop const top = offsetTop - scrollTop return top <= viewPortHeight } getBoundingClientRect返回值是一個 const target = document.querySelector('.target'); const clientRect = target.getBoundingClientRect(); console.log(clientRect); // { // bottom: 556.21875, // height: 393.59375, // left: 333, // right: 1017, // top: 162.625, // width: 684 // } 屬性對應的關系圖如下所示: 當頁面發生滾動的時候, 如果一個元素在視窗之內的話,那么它一定滿足下面四個條件:
實現代碼如下: function isInViewPort(element) { const viewWidth = window.innerWidth || document.documentElement.clientWidth; const viewHeight = window.innerHeight || document.documentElement.clientHeight; const { top, right, bottom, left, } = element.getBoundingClientRect(); return ( top >= 0 && left >= 0 && right <= viewWidth && bottom <= viewHeight ); } Intersection Observer
使用步驟主要分為兩步:創建觀察者和傳入被觀察者 創建觀察者const options = { // 表示重疊面積占被觀察者的比例,從 0 - 1 取值, // 1 表示完全被包含 threshold: 1.0, root:document.querySelector('#scrollArea') // 必須是目標元素的父級元素 }; const callback = (entries, observer) => { ....} const observer = new IntersectionObserver(callback, options); 通過 關于 // 上段代碼中被省略的 callback const callback = function(entries, observer) { entries.forEach(entry => { entry.time; // 觸發的時間 entry.rootBounds; // 根元素的位置矩形,這種情況下為視窗位置 entry.boundingClientRect; // 被觀察者的位置舉行 entry.intersectionRect; // 重疊區域的位置矩形 entry.intersectionRatio; // 重疊區域占被觀察者面積的比例(被觀察者不是矩形時也按照矩形計算) entry.target; // 被觀察者 }); }; 傳入被觀察者通過 const target = document.querySelector('.target'); observer.observe(target); 三、案例分析實現:創建了一個十萬個節點的長列表,當節點滾入到視窗中時,背景就會從紅色變?yōu)辄S色
<div class="container"></div>
.container { display: flex; flex-wrap: wrap; } .target { margin: 5px; width: 20px; height: 20px; background: red; } 往 const $container = $(".container"); // 插入 100000 個 <div class="target"></div> function createTargets() { const htmlString = new Array(100000) .fill('<div class="target"></div>') .join(""); $container.html(htmlString); } 這里,首先使用 function isInViewPort(element) { const viewWidth = window.innerWidth || document.documentElement.clientWidth; const viewHeight = window.innerHeight || document.documentElement.clientHeight; const { top, right, bottom, left } = element.getBoundingClientRect(); return top >= 0 && left >= 0 && right <= viewWidth && bottom <= viewHeight; } 然后開始監聽 $(window).on("scroll", () => { console.log("scroll !"); $targets.each((index, element) => { if (isInViewPort(element)) { $(element).css("background-color", "yellow"); } }); }); 通過上述方式,可以看到可視區域顏色會變成黃色了,但是可以明顯看到有卡頓的現象,原因在于我們綁定了 下面通過 首先創建一個觀察者 const observer = new IntersectionObserver(getYellow, { threshold: 1.0 });
function getYellow(entries, observer) { entries.forEach(entry => { $(entry.target).css("background-color", "yellow"); }); } 最后傳入觀察者,即 $targets.each((index, element) => { observer.observe(element); }); 可以看到功能同樣完成,并且頁面不會出現卡頓的情況 轉自https://www.cnblogs.com/smileZAZ/p/18216096 該文章在 2025/10/14 15:21:57 編輯過 |
